Bottle Finishes (aka "Lips") & Closures

HOME: Bottle Finishes & Closures - Part I

Click here to move directly to the "Organization & Structure" summary for the Finishes & Closures complex of pages.

INTRODUCTION

Bottle finishes or "lips" are almost as varied as the bottle shapes themselves.  The term "finish" originates with the mouth-blown bottle production process where the last step in completing a finished bottle was to "finish the lip."  Other alternative names for the finish besides lip was "top," "mouth," or "corkage" (Howard 1950; White 1978).

Conversely, with semi-automatic and fully automatic bottle machines, the lip or finish was (and still is) the first forming step in the bottle making process.  The finish is fully formed in the first "blank" or parison mold which only pre-forms the remainder of the bottle body.  The blank mold concept was the revolutionary invention (patented in 1882) of Philip Arbogast of Philadelphia, PA. although the implementation of the blank mold - which forms the "finish" of the bottle - was not realized until the 1890s (Howard 1950).  Completion of the body shape occurs in the  second "finishing" or blow mold.

A closure is the device that in conjunction with the finish (usually), was used to seal the contents inside the bottle.  The finish and closure are interrelated entities of any bottle.  The closure must conform to the finish in order to function, and vice versa.  The invention of some closures correspond to certain finishes and a closure may be adapted to old finishes; or both the finish and closure are invented together (Berge 1980).

The most common closures during the mouth-blown bottle era (19th & early 20th centuries) were various shapes and sizes of the simple cork.  However, the variety of closures that can be found on bottles produced during the time span that this website covers (1800 to the mid 20th century) at least rivals the diversity of finish forms and variations.  The closure pictured to the right is a Lightning type stopper on a type of "blob" finish dating from the 1890s.  Although some closures are briefly mentioned on this page, they are primarily covered on a related but separate; a link to the Closures page is just below.)

The use of the word "finish" to describe the entire lip and collar has carried on and is the preferred term for describing everything above the upper terminus of the neck for all bottles - mouth-blown and machine made.   White's (1978) excellent reference on bottle nomenclature and Ketchum's (1975) general bottle collecting book included the entire neck above the shoulder as part of their definition of a finish, though the neck is not included by most other authors (Toulouse 1969b; Deiss 1981; Creswick 1987; Jones & Sullivan 1989; Fike 1998 & others).   For this website, the neck is not considered part of the finish though it is very important to discuss in conjunction with the finish.  See the Bottle Morphology page for more illustrated information on descriptive bottle terminology, including the primary finish components if the finish has more than one physical part - the lip (upper finish part) and collar (lower finish part).  If a two-part finish, the lip is also frequently referred to simply as the upper part and the collar as the lower part.  If a three-part finish, the middle part is referred to as that - the middle part.  Other terms for the finish include "top" and "mouth" (White 1978).

Determining the method or process employed in the finishing of a bottle can be a useful diagnostic tool in helping date or age a given bottle.  Similarly, both the type or style of finish and the method of closure (i.e., how the bottle was sealed) can variably assist with the determination of age as well as what the bottle was likely used for (what "type" of bottle it is) .

Information on these subjects is the purpose of this page (Part I) and the two associated web pages (Parts II & III), which are described as follows:


If you have not read the introductory portions of the Dating page, please click on Cautionary Note which covers the limitations of the morphology based dating of historic bottles as well as other pertinent dating information.  Also see the dating Examples page for specific examples on the process of dating a bottle.  That page also provides some information on what a user can do to pursue more information once they arrive at the end of the dating (and typing) tools available on this website.  For illustrative purposes, two bottle dating examples are are also included on this page to help explain the specific processes and limitations inherent in finish related dating.


A. Mouth-blown Bottles

At some point in the production of all mouth-blown bottles, the fully expanded bottle must be removed from the blowpipe.  Before removing the blowpipe, the bottle must first be grasped or held in some fashion; a subject covered more extensively on the Bottle Bases page.  Also see snap case or pontil rod.  Once securely held, the process of removing the blowpipe begins...

Cracking-off, burst-off and shearing

Mouth-blown bottles were removed from the blowpipe via one of two primary methods: either through the cracking-off or "wetting off" process, or by shearing (cutting) the neck off from the blowpipe.  Both methods of blowpipe detachment are usually indistinguishable from each other on the finished item since the vast majority of bottles received post blowpipe manipulation at the removal point (Munsey 1970).  The finish on the green bottle in the center of the picture at the top of this page is an example where it is impossible to tell if the blowpipe was removed by shearing or cracking-off since the finish received post-blowpipe re-firing and possibly some tooling.

Cracking (Cracked) off ("wetting off") is the process of applying a small amount of water, usually via a wet wooden paddle, or via a cold piece of iron, to the point on the hot, just blown bottle where the glassmaker wishes to remove it from the blowpipe (Innes 1976).  Applying water or cold iron (compared to the very hot glass) weakens the glass at the point of application and all that is needed to sever the bottle from the blowpipe is a sharp tap with one of the glassmaker's tools (Kendrick 1968).  The result of this process is a variably rough and sharp tubular end to the neck.  The picture to the left shows a cracked-off finish on an 1850s "scroll" flask which was classified as GIX-15 by McKearin & Wilson (1978).  On some early American bottles - typically 1860s or before like the pictured flask - this was the completed finish.  Based on empirical observations, American bottles with this cursory type finish rarely date after about 1870.

The Burst-Off method is distinct variation of the cracking-off method though results in a similar result - a roughly broken off unfinished appearance to the bore (image to the right below).  This process entailed the blowing of a relatively large bubble in the glass just above the mold top/bottle which thinned the glass sufficiently to allow the bubble to "burst" - with a larger puff of air from the blower (gaffer) - detaching the blowpipe (Howard 1950).  This is also referred to as the blow-over method.  Many bottles imported from Europe - particularly cheaply made British made ink and small sauce bottles - have a burst-off finish and can date as late the 1920s (Wills 1974;Boow 1991).  The burst-off finish looks very similar to the cracked-off finish but does have some subtly differing characteristics (Kendrick 1968; Boow 1991):

• The top surface of the finish is usually very jagged and sharp. (A cracked-off rim may be jagged but is rarely as sharp.)
• The glass at the bore which forms the jagged top is distinctly thinner than the glass of the neck right below. (If a bottle was cracked-off the glass thickness at the rim is equal in thickness to the glass just below the detachment point, i.e., no narrowing at the rim.)
• There is rarely any type of pontil mark on the base as these bottles were produced in a later era.
• There is often - but not always - a "bulge" on the upper neck below the jagged finish which was a result of the glass expanding beyond the top surface of the mold.

These type bottles are occasionally encountered on American historic archaeological sites, though most of the crudely made, burst-off bottles seen today were relatively recently imported from England for the American collector market.  These cheaply produced bottles primarily date from the 1890s to 1920s era when bottle machines were rapidly dominating the market and are reflection of the economic pressures that eventually overwhelmed factories that still used older methods (Wills 1974; Boow 1991).  The image to the right is an example of a burst-off finish on an English ink bottle made during the early 20th century.  The burst-off finish seems to infrequently occur on American made items from the mid to late 19th century; the rough surface was usually ground down - a process described below (Jones & Sullivan 1989).  The burst-off blowpipe removal method was likely used commonly to quickly detach the blowpipe in the U. S. though most of the bottles would have received additional work to produce a refined finish that was more conducive to different closures.

The following link is to an amazing early 20th century (probably American) film clip of a mouth-blown "shop" blowing bottles.  The overall process of blowing is described on other website pages, though of particular note here is that the gaffers in this shop are using the burst-off method to detach the blowpipe.  Note that the gaffer quickly inflates the bottle and a large blow-over and efficiently bursts off the blowpipe by pulling it skillfully away from the mold while twisting and/or snapping it abruptly.  This film clip indicates that shearing or cracking off wasn't always used or necessary and that the burst-off method was possibly quite common.  Although this film clip may have been done to show the quickness that blowers could achieve mouth-blowing bottles, it is likely that the bottle produced would normally have been finished further by hand and the blow over and burst-off "finish" not left as is.  Film clip is compliments of the Owens-Illinois Glass Company (thanks to Phil Perry).

Early 20th century mouth-blown bottle making film clip.

Shearing was both a finish style and blowpipe detachment method produced by detaching the blowpipe from the bottle with some type of shears.  The shears cut the hot glass analogous to cutting thick plastic with scissors (Barber 1900).  The resulting finish - if little manipulation was applied besides some very cursory tooling to smooth out the edge - is called a sheared lip or finish.  The term "sheared lip" is commonly used by collectors and archaeologists to refer to simple cracked-off finishes, true sheared finishes, and to the fire polished versions of both methods (described next).  Sheared finish bottles date similarly to the cracked-off finishes, i.e., usually prior to 1870.  Click sheared finish for a picture of a finish that is typical of what is called sheared.

Fire polished finish

Once the bottle was removed from the blowpipe as described above, one additional finishing step is usually added even if no specific finish type was to be formed.  The upper neck of the bottle was reheated in a furnace to smooth out the crude or sharp edges where the blowpipe was detached.  The result of fire polishing is a finish or lip edge that is smooth and glossy with the rim being rounded and slightly thickened (Jones & Sullivan 1989).   The picture to the right is a close-up picture of a finish with these features on an early American figured flask (ca. 1820 and classified as GVIII-2 by McKearin & Wilson (1978)).  This method of completed finish - cracking-off/shearing followed by fire polishing - was commonly used on figured flasks dating from the first half of the 19th century and is very rarely found on bottles produced after about 1860 (Deiss 1981).   Click sunburst flask to view a picture of the entire flask noted above.

Note:  Finish fire polishing was a common post-finishing treatment used to smooth out the irregularities of most types of applied and tooled finishes on mouth-blown bottles and was likely used well into the 20th century until mouth-blown bottles were replaced by automatic bottle machines.  This is different than the simple cracked-off/sheared then fire polished finish described here.  (Incidentally, it appears that in the earlier days of machines, various machine-made bottles were sometimes fire polished at the finish (or entire body) to smooth out irregularities and achieve a polished finished appearance.)

Ground rim/lip or finish

Along with fire polishing, the grinding down of the cracked-off (or burst-off blow over) top surface of the lip or rim was one of the simplest methods for "finishing" a bottle since the functional parts of this finish were fully mold formed and not tooled to shape.  Once removed from the blowpipe and annealed, the rough rim was ground down flat to "finish" the bottle and sometimes to facilitate closure sealing.  The ground finish pictured to the left is on a Lightning fruit jar which dates from between 1882 and the early 1900s (Toulouse 1969a; Creswick 1987).  Note: The sealing surface for this jar was a rubber gasket placed on the horizontal ledge just below the ground finish rim, not the ground rim surface itself.  This is typical for ground rim/lip fruit jars including the famous Mason fruit jar which sealed on the shoulder below the external threads.

This finishing process produces the following general diagnostic characteristics: the extreme upper horizontal surface of the lip (rim) is flat (not rounded at all) and slightly rough to the touch - like fine grit sandpaper; there are usually tiny chips or roughness along the inside and outside edges resulting from the grinding process; there is often an opaque, white-ish appearance to ground surface; and the mold seam ends right at the top outside edge of the ground rim and does not curl over the top of the rim.

The following is quoted from Toulouse's book Fruit Jars (1969a) describing the process of grinding fruit jar rims as well as the general working conditions in glass manufacturing plants of a century ago:

The grinding operation was a boy's job.  The boys squatted around a horizontally rotating grinding wheel on which the abrasive of sand and water flowed form a central spout.  Jigs and fixtures held the jars upright on the wheel, and the boys supplied the pressure necessary to hold the jar top firmly on the wheel.  The hours were long and (it)...was cold, wet, debilitating work, and a notorious child labor...that took its toll in health-wrecked men, if not an early demise of the boys... A boy was fortunate if he were transferred early enough to the job of "snapper up" at the molds, or "carry-in" boy to the lehrs.  One of my men retired at the age of sixty-five after fifty-three years in the glass business; he had started at the grind shop at twelve.

Laid-on ring - (aka "string rim")

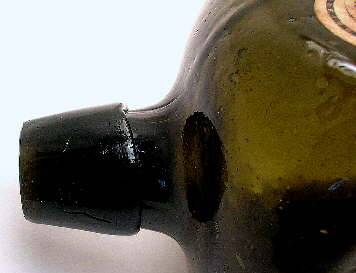

Once the blowpipe was removed, a string or band of glass was laid around the outside of the extreme upper neck forming the laid-on ring finish.  Once applied, this band/string of glass received little or no post-glass application tool work. ( Click applying a string finish to view an illustration of this process.)  The entire finish is comprised of the applied glass and sheared/cracked-off bore of the bottle.  This ring of glass performed several functions - to give strength reinforcement to the bore of the bottle and to provide an anchor for wiring down a cork if necessary.  This method of finishing produced primitive applied finishes which are the precursors to the applied finish (covered later).  The image to the right is of a mid-19th century French wine bottle finish which shows crudity typical with this type finish.  There are many variations on the theme of the laid-on ring or string finish.  If interested in viewing more examples, consult either Jones (1986: 49-71) or Jones & Sullivan (1989: 95-96).

The laid-on ring finish typically dates from or prior to the 1860s and is particular common on bottles made prior to 1850 (Deiss 1981).  Be aware that there are many bottles that appear to have laid-on ring finishes but are actually either applied or tooled (covered later on this page).  The subtle variations differentiating these can be difficult to even the trained eye, though the true laid-on ring is usually crudely asymmetrical, has no horizontally concentric tooling marks in evidence on the finish, and simply looks as though a strip of glass was wrapped around the upper neck just below the bore with little other handwork done - which is just what was done.  (See the finish examples covered in Part II: Types or Styles of Finishes.)

Rolled or folded-in/out finish

This method of producing a finish is a very early use of some type(s) of finish manipulation tools and is most common on early figured flasks, medicinal, and food bottles dating from or before the 1870s (Deiss 1981).  Once the blowpipe was removed from the bottle, the hot glass at the removal point was reheated as necessary then either rolled/folded into the bore of the bottle or folded out onto the extreme upper neck, to smooth out and form the finish.  This also provided extra strength to the sealing portion of the bottle by "doubling" over the glass.   The picture to the left shows a crudely rolled or folded-in finish on an 1850s pontiled medicinal bottle (DR. D. JAYNE'S / HAIR TONIC - PHILADA (Philadelphia, PA.)).  The finish on the pictured bottle is crude enough so that parts of it appear to be rolled out.  However, when in hand it is obviously rolled inwards.  For an example of an rolled finish that was distinctly folded out, click HERE.  When rolled to the inside, this finish is also called an infolded lip (White 1978).

Flared or Flanged finish

A variation of the above was the flared or flanged lip or finish.   This method also entailed the use of some type(s) of simple tool(s) to manipulate the hot glass at the end of the neck to create a relatively thin finish which projects away from the top of the bore at a more or less 90° angle.  According to Kendrick (1968), the mouth of a bottle "...could be expanded to form the flared lip, either by the use of a jack, or by inserting a cone-shaped plug into the mouth of the bottle as the pliable mass (glass) rotated."  (Click forming a flared finish to view an illustration of a gaffer working at a chair forming a flared finish.)  The picture below right shows a flared finish on an ink or utility bottle produced by an eastern American glasshouse (ca. 1845-1855).

Based primarily on empirical observations, but also corroborated in Deiss (1981), this method of finishing was most commonly used in the U.S. between the 1820s and about 1870, though it can date back to antiquity in Europe (Toulouse 1969b; Van den Bossche 2001).  This early flared finish can be difficult to discriminate from finishes produced by the methods covered below.  To the experienced eye it can be distinguished from later applied or tooled flared finishes by the thinness of the glass that forms the flared portion; much thinner glass than produced by these other methods.  See Part II: Types or Styles of Finishes for more information; this finish is included within the discussion of wide prescription finish.

Note: Although this type finish was "tooled" (i.e., formed with tools) and formed from the reheated glass at the sheared or cracked-off neck opening (i.e., below the shearing/cracking off point), it was differently manipulated than the later tooled finishing method discussed below which was formed with a more technologically advanced lipping tool.  This is discussed more in the tooled finishes section below.

Both the rolled and flared finishes were formed from the reheating and working of the glass at the blowpipe detachment area with some type of primitive tool(s) and not to have entailed the addition of any extra, post-blowpipe removal glass to the finish (Toulouse 1969b).  This differentiates these methods from the next important one...

Applied finishes

Between the early 1800s and the late 1880s, particularly between about 1840 and 1885, the most common way of finishing a bottle entailed an application of additional glass at the point where the blowpipe was removed (Howard 1950).  Specifically, hot glass was added via a small gather made on a blowpipe or other tool as a variably thick (depending on the finish type and size desired) strip or "string" immediately below the cracked-off or sheared point of the neck as the bottle was rotated by another glassworker holding the bottle by the base with either a pontil rod or within a snap-case tool (Jones & Sullivan 1989).  This applied hot glass was then manipulated with various tools - including finishing or lipping tools (illustration below right) - to form a wide variety of different styles of finishes that could be more complex or elaborate than the earlier laid-on rings and other simple finishes noted earlier.

The following is from an 1860 jar mold patent (#30,063) and describes the process that was used to form bottles at that time.  In this case, the brief though succinct narrative describes the mouth-blown production of jars and their applied finishes.  At that time the most common finish on jars was the groove ring wax seal finish (image of such below left) although the process for forming and finishing most bottle types at the time was identical (U. S. Patent Office 1860):

"...it has been customary to mold the body and neck of the jar in molds of two parts essentially like...(the mold in the patent).  After the jar has been thus formed and removed from the mold a portion of melted glass is taken and united to the top of the jar and the...(finish)...is then...(formed with)...the plastic glass by a tool adapted to the purpose.  This process is necessarily slow and laborious and the work when completed is not so uniform and complete as when the jar is finished in the mold and at one operation...(which was the purpose of the specific patented mold).

This succinctly describes the application and subsequent tooling to shape of the finishing glass for an applied finish and even notes the crudity ("...not so uniform...") that is often a result of such an operation.  This patent is available on this website at this link:  http://www.sha.org/bottle/pdffiles/hemingray1860.pdf

The applied two-part brandy finish pictured to the left shows distinct evidence of the tooling which "overshot" the lower edge of the finish (collar) and flattened down some of the applied glass spillover on the neck.  (Height of this finish is about an inch [2.5-3 cm].)  The image to the right shows an elongated or "stretched" horizontal bubble within a one-part blob finish indicating how the glass was wrapped around the cracked-off/sheared neck.  Interior bubbles in glass will often lie parallel to the direction in which the glass was stretched when hot if that stretching was intense enough.  (Bubbles in the body of a mouth-blown bottle will usually be more vertically elongated reflecting the vertical stretching of glass as the bottle is expanded [empirical observations]).

This more entailed tooling of the finish glass and generally more complex design of most applied finishes is what differentiates this method of finishing from the simple "laid-on ring" finish described earlier.  (Note: A laid-on ring must be considered a type of simple and early applied finish since the "ring" often received some cursory tooling and had to have been wrapped around the neck with a tool.  This distinction is really only pertinent to bottles having the following one-part finish types: champagne, string rim, or flared ring.)  Groove ring wax seal canning jars have a type of applied finish that is called a "pressed, laid-on ring" and was largely produced the same way as the applied finish described above, with the forming to shape done with some sort of pressing tool in a single operation (Toulouse 1969a; Creswick 1987).  The picture below left is of a pressed laid-on ring finish on an 1870s canning/fruit jar.

The 7th edition (1842) of the Encyclopedia Britannica (Vol. X, p. 579) contains an English period explanation of the process of applying and tooling a finish beginning from the point where the bottle is detached from the blowpipe:

The finisher then warms the bottle at the furnace, and taking out a small quantity of metal  (glass) on what is termed a ring iron, he turns it once round the mouth forming the ring seen at the mouth of bottles.  He then employs the shears to give shape to the neck.  One of the blades of the shears has a piece of brass in the center, tapered like a common cork, which forms the mouth (inside of the finish), to the other blade is attached a piece of brass, used to form the ring (outside of the finish).  (From McKearin & Wilson 1978; clarification added parenthetically.)

The "shears" noted were an early variety of lipping tool which is not precisely pictured or illustrated on this website though a newer (late 19th century) version is illustrated to the right - click to enlarge.   (Note: An artists rendition of the described "shears" may be found on page 217 of McKearin & Wilson (1978) or page 52 of Deiss (1981)).  The first lipping or finishing tool to be patented in the United States was in 1856, though imported tools were probably already in use (Toulouse 1969b).  In any event, the description above briefly but clearly describes the post-blowpipe application of additional glass which is then formed to shape with a tool - i.e., an applied finish.  (As a side note, click on the following link - Hiram Frank - Patent #130,207 - which is of an 1872 patent illustrating a lipping tool similar to that illustrated above, except designed to produce a finish with internal thread which accepted a threaded glass stopper [U. S. Patent Office 1872; Lockhart et al. unpublished manuscript 2007].)

The collector term - and the term used on this website - for this general category of finishing and finishes is an applied finish or sometimes a "true" applied finish.  These could also be termed "applied & tooled" finishes since tooling of the added glass was necessary to create the desired finish shape and size (Deiss 1981; Roller 1983; Boow 1991).  For simplicity it is just referred to as an applied finish on this website.  This type of finish also goes by an array of mostly collector originated terms including "crudely applied lip", "glob top", and "globby top", "drippy top", etc.  It should be noted that applied finishes - especially earlier examples (1840-1870) - tend to be more substantial or bulky and crude compared to later applied finishes and the "tooled" finishes discussed next, though there are (of course) many exceptions.  This is likely because of the quickly evolving and improving techniques and tools as time progressed during the last half of the 19th century - a period of explosive innovation in the American glass making industry (Scoville 1948; Deiss pers. comm. 2003).

Some authors, however, have criticized the use of the term "applied lip" as it tells "...nothing of the method (used to produce the finish)..." (Toulouse 1969b) or that "...the term is so broadly interpreted as to render it meaningless" (Jones & Sullivan 1989).  This certainly has been true.  Many people - collectors and archaeologists alike - too broadly use the term "applied lip" or "applied finish" to refer to any finish on a mouth-blown, non-machine-made bottle where the side mold seam does not terminate at the very top of the finish.  The origin of this broad interpretation appears to have come from John C. Tibbitts book "1200 Bottles Priced" who described an applied lip "...to include any lip or mouth that was hand worked after the bottle was broken off from the blowpipe.  Among others, it includes sheared lip, rolled lip, applied collar on sheared lip, applied collar below sheared lip, applied blob, etc." (Tibbitts 1964).  Tibbitts so broadly defined an applied lip as to include virtually any finish on a mouth-blown bottle including what this website calls a "tooled" finish (discussed in the next section).

As described on this website, the production of a "tooled" or "improved tooled" finish (next section) entailed a different manufacturing process than a "true" applied finish.  It is important to clearly differentiate "tooled" and "applied" finishes for dating purposes; thus this page.  Simply expressed, an “applied” finish entailed the application of additional glass and a “tooled finish” typically did not.

This website primarily uses the term applied finish, though may use the terms "true" applied finish or even applied lip to refer to a separately applied finish which has the following diagnostic features:

The specific dating of bottles with applied finishes is covered after the next section, as the dating of the transition from applied finishes to tooled finishes is somewhat bottle type specific.  But before that subject can be covered the "tooled" finishing method must be discussed (next).

Tooled finishes

This method of finishing is a result of the glass for the finish-to-be usually* being blown with the rest of the bottle, not added in a separate hand application as with the applied finishing method described above.  (See * note below.)  Once the blowpipe was severed from the bottle neck, the finish was shape formed and made smooth and precise by the reheating or re-firing of the end of the neck and hand or mechanical compression tooling to shape (Deiss 1981; Roller 1983; Ring & Ham 1998).  Click lipping tool to see an illustration (also shown in the applied finish section above) of a typical tool used for finish forming which was inserted in the neck of the bottle and rotated while squeezing the jaws to form the finish to the desired conformation.  (It should be noted that this conformation of tool may have been used for the final forming of both tooled or applied finishes.  Click Patent No. 295,848 to view an 1884 patent illustration of a tool that was most likely used for a tooled finish as described here and which is explained below.)  Tooled finishes are also called "wiped" finishes by some - a fairly descriptive term for the process (Preble 1987; Fike 1998).

Important Note:  On this website, the term "tooled finish" is not used to describe the primitive tooling of the simple finishes noted earlier on this page, i.e., the flared finish, rolled finish, and often the sheared/cracked-off and re-fired finish.  Indeed, these earlier type finishes/methods were typically at least partially formed with the use of primitive tools so are in a sense a type of "tooled" finish.  Instead, the term "tooled finish" as used on this website refers to the more distinctive finishes fully formed from non-added glass by use of lipping tools like that illustrated at the link in the above paragraph.  This is a fine distinction, but has important ramifications to the proper dating of bottles.

(*There are indications that some "tooled finishes" - most likely the earliest ones in the 1870s to mid 1880s - were formed from the application of additional glass to the cracked-off/sheared end of the neck.  This glass would have then been substantially re-fired in the glory-hole and tooled to the desired shape with all evidence of the applied glass masked by the combination of re-firing and tooling.  How these bottles would be differentiated from the regular tooled finishes formed without added glass as described here is unknown and likely can not be.  In any event, the identification and dating information described here would still be pertinent to these bottles which exhibit "tooled finish" diagnostic characteristics [Toulouse 1969b].)

Empirical observations indicate that there were two distinct variations of the tooled finish based on mold conformation and finishing activity - the "standard" and the "improved" tooled finishes - both of which can be accurately referred to as "tooled finishes."  However, by making a distinction between the two subtle variations there is some bottle dating refinement possible.  These types are described as follow:

"Standard" tooled finish:  In the collector and (usually) archaeology worlds - and on this website - this is usually just called a tooled finish.  This simple and generally oldest tooled finishing method entailed a mold where the finish conformation was not significantly pre-formed in the mold.  The shape of the base, body, and neck of the bottle were formed by the mold, but not the precise shape of the finish.  To put it differently, the entire neck and future finish portion of the bottle was blown in the mold with the rest of the bottle but there was limited (or no) pre-forming of the finish by the mold.  Although the earliest of the two tooling methods, it also continued in use up until being replaced by machine-made methods, overlapping the "improved" tooling method described next.

The "standard" tooled finish is identified by a side mold seam that distinctly ends or fades out on the neck distinctly below the bottom edge of the finish.  This is illustrated by the image directly above and to the above right (click both to enlarge).  Click two-piece post mold to see an illustration of a typical bottle mold.  This illustration shows that the upper neck portion of the mold does not accomplish any molding of the finish shape, just the neck shape.  This type mold could have produced a bottle finished with either an applied finish (using glass applied to the neck end which was tooled) or a tooled finish (by re-heating and compression tooling the end of the straight neck without additional glass added).   With the latter process, the glassblower would have cracked-off/sheared the blowpipe high enough to leave "extra" glass to work with - by reheating and compression tooling - in creating a finish.  Click on Patent No. 295,848 to view the patent illustration and description for a "Tool for Forming Bottle Lips and Necks" that was granted to J. B. Wilson in 1884 (U. S. Patent & Trademark Office website).  This particular tool conformation, as the patent name notes, was designed to tool both the finish and the upper neck of bottle producing a "standard" tooled finish where the upper portion of the neck as well as the finish would exhibit horizontal compression tooling marks.

The "standard" tooled finish could be considered a transition type tooled finish that was easily adapted to bottles produced in molds that were previously finished with an applied finish.  The picture to the left above shows the finishes of two mid-1880s Western (San Francisco, CA.) bitters bottles which were blown in the same exact mold but one (right) has an applied finish and the other (left) a "standard" tooled finish (Wichmann 1999).  (These two bottles are also date estimated and discussed at length in the section below entitled A Mouth-blown Finish Related Dating Example.)

"Improved" tooled finish:  This tooled finish variation is referred to on this site as either an improved finish or improved tooled finish.  Towards the later end of the mouth-blown era (late 1890s to 1910s) many molds did significantly pre-form most or all of the basic external finish shape, i.e., the upper neck portion of the mold cavity had the finish shape included.  The basic external shape and bore conformation (for proper closure fit) was made more precise with minor re-firing and tooling after removal from the mold (Deiss 1981).  Grace Kendrick called this type mold a "closed" mold as versus an "open" mold which did not form any of the actual finish conformation (Kendrick 1963).  (Bottles produced in this latter mold had to be finished with an applied or tooled finish, as described above.)  The improved tooled finish is identified by a side mold seam that ends or fades out well into the conformation of the finish itself, often just short of the top of the bottle.  Click catsup threaded improved tooled finish to view an example which would have been formed by a mold similar that illustrated below.  The concentric tooling marks are evident only in the upper portions of the finish.  These type finishes were definitely not formed by added glass and strongly indicative that the vast majority of tooled finishes of both types - "standard" and "improved" - were not formed via the addition of added glass.

The illustration to the left shows a "cup base" closed mold which has the conformation of the external screw thread finish incorporated into the mold itself - an improved tooled finish.  (This mold type is also referred sometimes to as a blow-over mold.)  A bottle produced in this type of mold would have had either some post-molding/post-blowpipe tooling done to the extreme upper finish portion above the screw threads or the lip surface (i.e., rim) would have been ground flat to remove the rough edges created when the blowpipe was cracked-off.  One of these processes would have had to be done to make the upper finish suitably smooth and consistent enough to reliably seal with a screw cap.   The picture to the right (click to enlarge) shows the type of finish (on a ca. 1905-1915 flask) that would have been produced by this type of mold.  It is mouth-blown with molded external threads which also exhibits tooling marks in the finish area above the top of the screw threads.  A bottle with this type of external screw thread finish almost certainly dates from the 1900-1920 era; this type finish was used frequently on later mouth-blown liquor flasks like that pictured as well as some other types of bottles like those made for catsup.  Click external screw cap to view the discussion of mouth-blown external screw thread finishes and caps on the "Types of Bottle Closures" page.

The picture below (click to enlarge) shows the "improved" tooled finish characteristics close-up.  The location of the seam on this bottle makes it readily apparent that the basic finish form, including the lower ring, was formed by the mold without the addition of added glass.  The pictured "straight brandy" finish is on an Oregon Importing Company (Portland, OR.) cylinder liquor bottle that dates between 1904 and 1915 (Thomas 1998).  The "improved" finish almost always identifies a bottle as having been produced after 1895-1900 or so (empirical observations).

As already noted, all tooled finishes potentially show some concentric tooling marks with the "standard" tooled finish having these marks extending onto the neck below the finish.  Due to the amount of tooling on most bottles produced with this finishing method, the upper side mold seam is often substantially "wiped out" making it difficult to determine how much shape forming the finish received in the mold versus how much was purely from the tooling actions.  Empirical evidence indicates that many or likely most tooled finishes had at least the basic finish conformation formed in the mold.  However, the subsequent re-firing and lipping tool action to "finish" the finish eradicated most or all of the signs of the side mold seam for as far as the tool reached on the outside of the neck.  The absence of the mold seam in the finish itself likely makes many "improved" tooled finishes actually appear to be "standard" tooled finishes.  In other words, if the mold seam is evident within the finish, one knows that it is an "improved" tooled finish; if the side mold seam is not evident in the finish then one can't say for sure that it was not partially molded, only that physically it is a tooled finish.  This is belaboring a fine point, but it does have dating implications as noted above and summarized again below.

In any event, the actual finish glass for all tooled finishes was not typically added to the neck terminus like with an applied finish.  To picture the difference in these finish classes another way, the blowpipe detachment point on an applied finish was at or just above the point where the finish and neck meet in the finished bottle; the blowpipe detachment point on tooled finishes was (or became) the top surface of the finish.  The tooled finish was a major innovation in that the bore and upper neck of bottle could be made more smooth, properly tapered, and of uniform dimensions as compared to the applied finish.  This allowed for more reliable sealing of the bottle with a cork or other closures since more of the inside surface of the finish and upper neck was in contact with the closure, particularly corks (Deiss pers. comm. 2003).

The following tooling description is from Munsey (1971):

Tools specifically for finishing were developed around 1830 in England and around 1850 in America.  These devices usually consisted of a rod, which was inserted into the mouth of the bottle, and an associated part that could be clamped to the outside of the mouth and neck.  By rotating the device the lip was finished and the seams erased.  Later these specific lip finishing devices were attached to workbenches and operated by hand- or foot-operated presses.  If the bottle thus finished was rotated during the process the side seams were rubbed out but if the bottle was merely pressed the side seams were left intact and ran all the way to the top of the bottle.

These processes described by Munsey would be applicable to both applied and tooled finishes, though it is likely that the workbench operated finishing would have been much more common on the later "improved" tooled finishes.  Beginning in the 1880s many versions of these bench-operated, rotating pressing tools were patented possibly indicating that the changeover period to tooled finishing was peaking.  These relatively simple, hand or foot operated finishing "machines" clamped onto the finish and upper neck areas and generally erased the side mold seams anywhere the tool made contact with the glass (Toulouse 1969b).

The first fully molded distinct "finish" was in 1858 with the invention and production of the Mason canning jar (Deiss 1981).  These revolutionary jars were produced from a blow-over mold where the outside screw thread finish was molded along with the body and base.  The rough cracked-off top surface of this finish subsequently ground off to make it uniform and flat (ground finishes are covered in Part II).

In general, with the exception of simple straight finishes (simply sheared or cracked-off upper neck ends which were mold formed) and canning jars, molds for bottles with incorporated finishes were not common until the late 1870s and not ubiquitous until the 1890s and were made possible with the advent of a couple technologies.  First was the development of gas fired glory holes which allowed for the easy reheating of the finish without reheating the entire bottle.  The other development was the implementation of specifically sized lipping tools that matched the configuration of the mold formed finish portion of the bottle.  The post-mold heating and tooling was necessary to achieve smoothness and uniformity for more standardized cork sizes and closures and to smooth out the irregularities where the blowpipe was cracked-off  (Deiss 1981; empirical observations).  As an example, the crown cap type finish pictured below (patented in 1892) required a level of uniformity for proper sealing which was provided by the higher precision of the "improved" tooled finishing method and later with even higher precision automatic bottle machines.

On this website this class of finishes will be simply referred to as "tooled" finishes, with the distinct between the "standard" and "improved" versions made when useful.  In the existing literature this finishing method is sometimes referred to descriptively as a "wiped" finish, presumably because the lipping tool "wipes" out traces of the upper side mold seams (Preble 1987;Fike 1998).

Most bottles with tooled finishes typically date no earlier than 1885 to 1890.  However, some tooled finishes as described here date back to the 1870s, but primarily with just certain classes of bottles (e.g., druggist bottles).  This is discussed in the next section.  All hand tooled finishes largely disappeared between 1910 and the early 1920s with the ever increasing dominance of semi-automatic and then fully automatic bottle making machines.


Dating notes on the changeover period from applied finishes to tooled finishes:

The changeover from applied finishes to tooled finishes was a relatively significant technological shift in bottle manufacturing.  This changeover can often provide a useful dating break for bottles made during the last quarter of the 19th century.  As noted on the Bottle Dating page there was a lot of time variation in making this transition depending on the type or class of bottle.  There were also variations based on different glass makers, but these are extremely difficult or impossible to track down as most bottles can not be firmly attributed to a particular glass factory during this era.  Empirical observations indicate that the mid 1870s is when the transition from applied finishes to the more technologically advanced tooled finishes significantly commenced. There are a relatively limited percentage of bottles known to pre-date the mid-1870s that have the tooled finish as defined above.  Those that are known are primarily smaller bottles (discussed more below).  Likewise, by the mid-1890s the changeover to tooled finishes was largely complete and a large majority of American made bottles dating after that time have tooled finishes.

The following information (in the green box) provides some general dating guidelines for this transition categorized by types or classes of bottles.  It is based on the content managers extensive empirical observations over time in conjunction with an wide array of published references noted below which provide relatively precise company dating for various types and styles of historic bottles.  As there are many exceptions to these general observations, dating accuracy can only be achieved by using these finish related date ranges in conjunction with other diagnostic features as noted on the Bottle Dating pages.  However, the following information is considered accurate for a majority of bottles within the type classes listed.  See the Bottle Typing/Diagnostic Shapes page for information about the types or classes of bottles noted below.  (Note: Most of the links in the box below will access a pop-up picture of an example of the bottle type noted.)


(The references consulted to create the brief summary above include: Toulouse (1967); Wilson & Wilson (1968,1969,1971); Shimko (1969); Willis (1972); Switzer (1974); White (1974); Thomas (1974,1978,1998a & b); Fowler (1975); Zumwalt (1980); Holabird (1981); Wilson (1981); Feldhaus (1986); Fike (1987); Creswick (1987); Borton (1988); Pollard (1993); Fletcher (1994); Markota (1994,1999); Huggins (1997); Fike (1998); Odell (1997,2000); Wichmann (1999); Lockhart (2001a,b & c); Chapman (2003); Teal & Wallace 2005; and others)


B. Machine-made bottles

Ironically, the "finish" is the portion of the bottle that is first formed in the machine manufacture of most bottles and jars.  With all semi and fully automatic bottle machines, the initial gob of glass is either sucked (Owens Automatic Bottle Machine), hand placed (semi-automatic machines like the 1908 image to the right), or dropped (gob feeder automatic machines) into the initial parison mold where it is usually held in place by the neck ring (ring mold) portion of the parison mold.  The neck ring mold was the part of the initial parison mold that usually formed the bottle finish and also held the parison while moving it to the second blow mold where it (neck ring mold) was also a part of that mold complex.

The neck ring mold forms the finish at the beginning of the bottle production or molding process with all blow-and-blow machines and before the body of the bottle is expanded to desired size.  This is also true of some press-and-blow machines, though many of these machines did not use the neck ring mold quite the same as blow-and-blow machines.  One of the better technical discussions on the mechanics of machine bottle production - with excellent illustrations - is found in the Hand Book of Glass Manufacture (Tooley 1953), in a chapter entitled Feeding and Forming by H. H. Holscher of the Owens-Illinois Glass Company.

The link below allows a user to view an amazing short movie clip from 1910 that shows two different early Owens Automatic Bottle Machines in operation.  The first machine is the "Machine #5" which the film clip script notes as having been made in 1906 in Toledo, Ohio.  This was apparently the earliest of the viable commercial machines, and in fact, the clip was made to help promote and sell the machine to potential buyers.  The first person shown operating Machine #5 is Emil Bock, a mechanical genius who worked with Michael Owens from the "bicycle pump" early machine experimentation days (1890s) and transformed Mike's ideas into workable steel machines.  Michael Owens is the second person shown picking up and examining a couple beer bottles.  This clip is also reported to be the only movie ever made showing Michael Owens who was reputed to be "camera shy."  The last half of the clip shows a much larger, 15 head "AQ" machine in operation at an Owens-Illinois plant in 1959 (Walbridge 1920; Owens-Illinois Co. 1959; Perry pers. comm. 2007).  Of particular note, the 1959 portion of the clip shows  the sucking up and cutting off of the glass from the continuous tank by the parison or blank mold.  Towards the end it also shows the shift of the parison from the parison/blank mold to the blow mold.  Film clip is compliments of the Owens-Illinois Glass Company. (Many thanks to Phil Perry - a senior engineer with that company - who graciously provided this clip.)

1910 film clip of a early Owens Automatic Bottle Machine in operation.

There are numerous diagnostic features that differentiate a machine-made bottle from a mouth-blown bottle.  These characteristics were covered in the machine-made section of the Bottle Dating page; click on machine-made bottle dating for more information.  The diagnostic features which virtually all machine-made bottle finishes share are related to the neck portion of the parison mold (i.e., ring mold) which holds the formative bottle-to-be.  These features are described as follows:
